- Material:Stainless Steel
- Motor:Copper Wire
- Outlet Dia:0.75
- Working Voltage:24V
- Over-voltage Protection:33V
- Undervoltage Protection:20V
- Over-current Protection:15A
- Under-current Protection:3.5A
- Max Voltage for Battery:40V
- Max Voltage for Panel:50V
- Voltage:24V
- Model Number:3SPS1.0/30-D24/80
- Brand Name:XINYA
- Place of Origin:CN;ZHE
- Material:SS
- Application:agriculture
- Horsepower:80W
Product Description

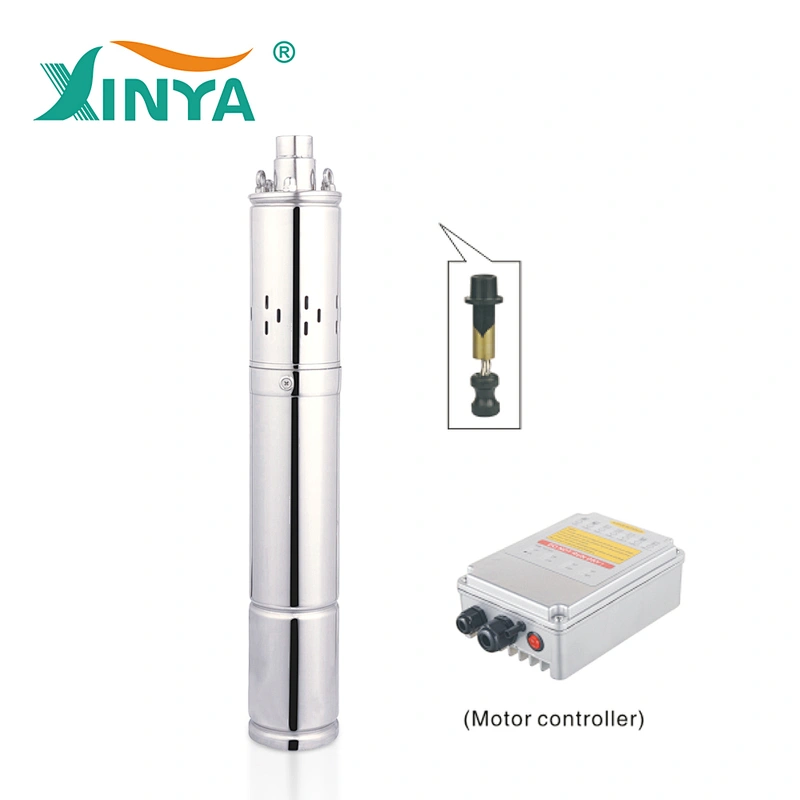

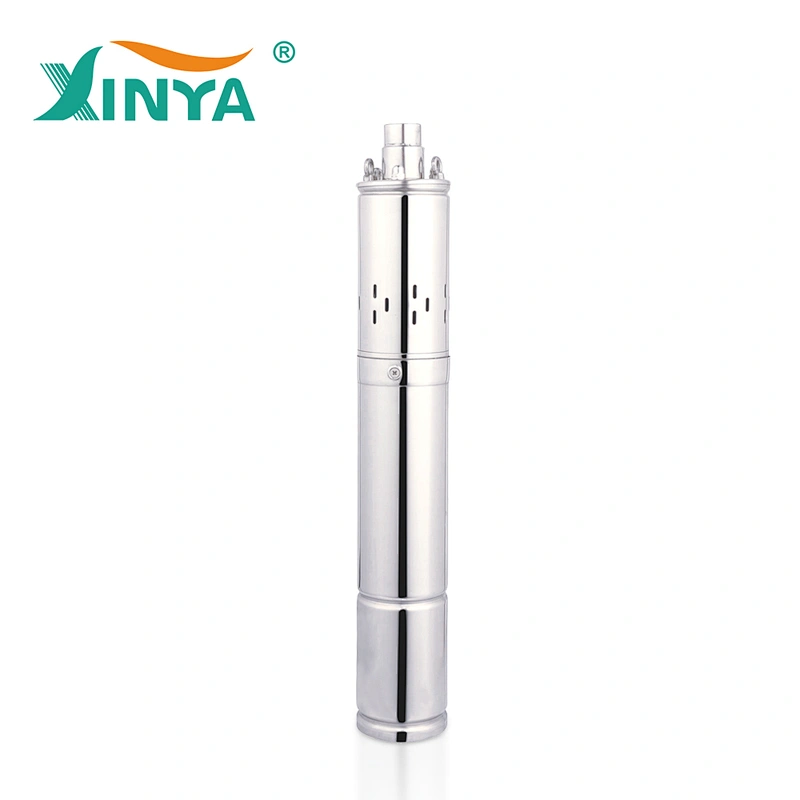

3SPS1.0/30-D24/80

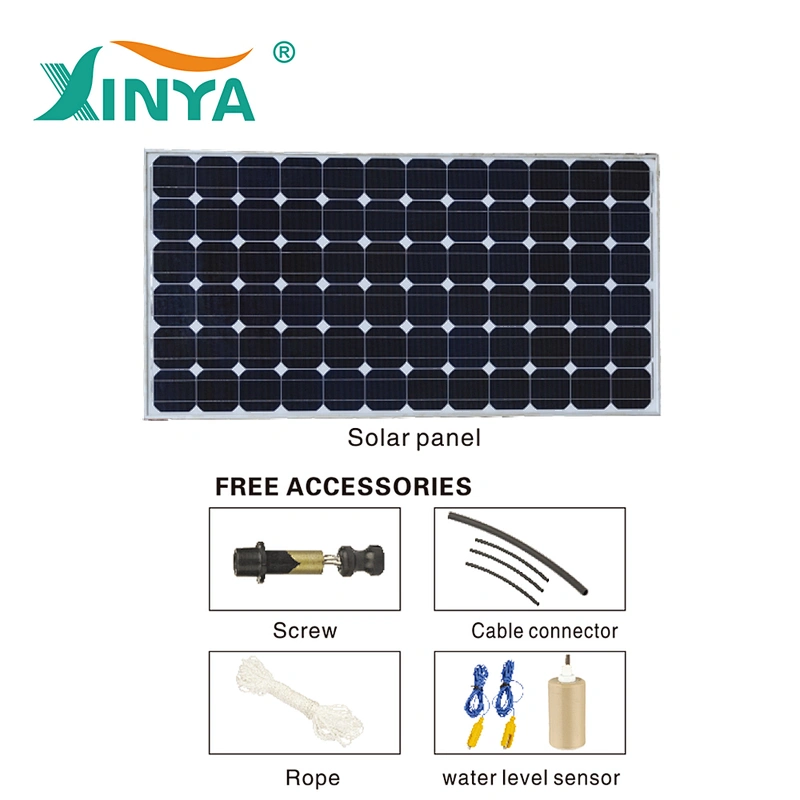

Set Parts
Model | Impeller | Voltage | Power | Max Flow | Max Head | Outlet | G.W. | Dimension |
3SPS1.0/30-D24/80 | screw | 24V | 80w | 1M3/h | 30m | 0.75" | 7kg | 76*460mm |
Protection | Over-voltage | Under-voltage | Over-Current | Undercurrent | |||
Pump | 33V | 20V | 15A | 3.5A | |||
Battery | 40V | ||||||
Panel | 50V | ||||||
When voltage is more than 33V or the current is less than 3.5A, the pump will stop working after 60s amd restart after 30min | |||||||
Application
Working Condition | Working condition | |
Volume ration of sand content | <0.1% | |
Particle Size | <0.2mm | |
Max medium temperature | 40 ℃ | |
PH | 6.5-8.5 | |
Protection against dry work | voltage >33V current<3.5A | |
