- Pump body:Stainless Steel
- Motor:Copper Wire
- Outlet Dia:1.0"
- Working Voltage:48-66V
- Over-voltage Protection:66V
- Undervoltage Protection:40V
- Over-current Protection:15A
- Under-current Protection:3.5A
- Max Voltage for Battery:80V
- Max Voltage for Panel:100V
- Voltage:48V
- Model Number:4SES3.8/95-D48/800
- Brand Name:XINYA
- Place of Origin:CN;ZHE
- Material:SS
- Application:agriculture
- Horsepower:1.1HP
Product Description
4SES3.8/95-D48/800

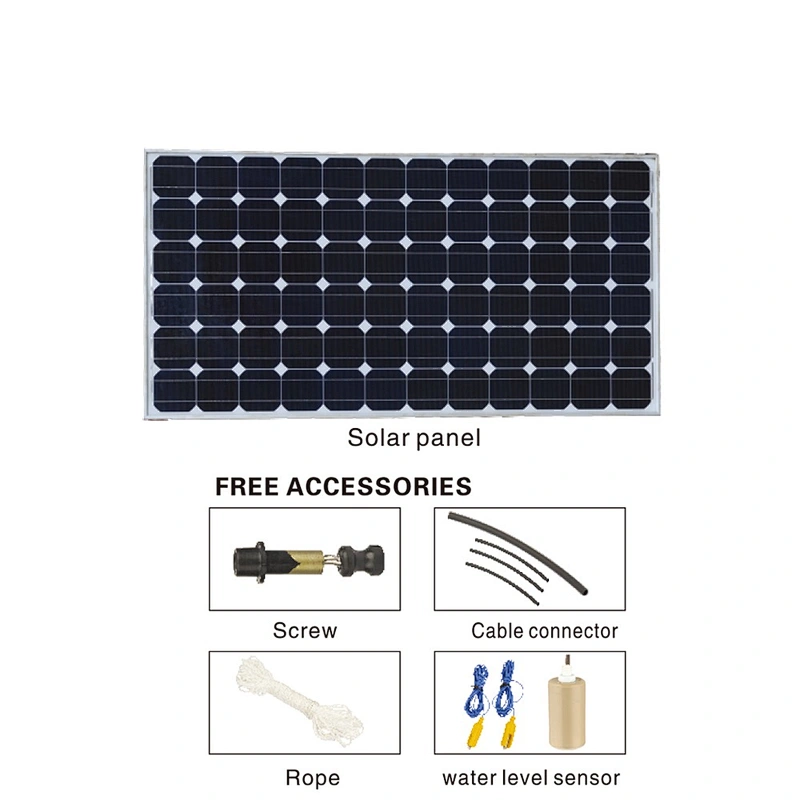

Set Parts
Model （Screw） | Voltage | Power | Max Flow | Max Head | Outlet | G.W. | Dimension |
4SES3.8/95-D48/800 | 48V | 800w | 3.8M3/h | 95m | 1" | 13.5kg | 10*48cm |
Protection | Over-voltage | Under-voltage | Over-Current | Undercurrent | |||
Pump | 66V | 40V | 15A | 3.5A | |||
Battery | 80V | ||||||
Panel | 100V | ||||||
When voltage is more than 33V or the current is less than 3.5A, the pump wo;; stop working after 60s amd restart after 30min | |||||||
Application
Working Condition | Working condition | |
Volume ration of sand content | <0.1% | |
Particle Size | <0.2mm | |
Max medium temperature | 40 ℃ | |
PH | 6.5-8.5 | |
Protection against dry work | voltage >66V current<3.5A | |
