- Pump body:Stainless Steel
- Motor:Copper Wire
- Outlet Dia:1.25"
- Working Voltage:72-99V
- Over-voltage Protection:99V
- Undervoltage Protection:60V
- Over-current Protection:15A
- Under-current Protection:3.5A
- Max Voltage for Battery:120V
- Max Voltage for Panel:150V
- Voltage:72V
- Model Number:3SESC4/115-D72/1300
- Brand Name:XINYA
- Place of Origin:CN;ZHE
- Material:SS
- Application:agriculture
- Horsepower:1.7HP
Product Description
3SESC4/115-D72/1300

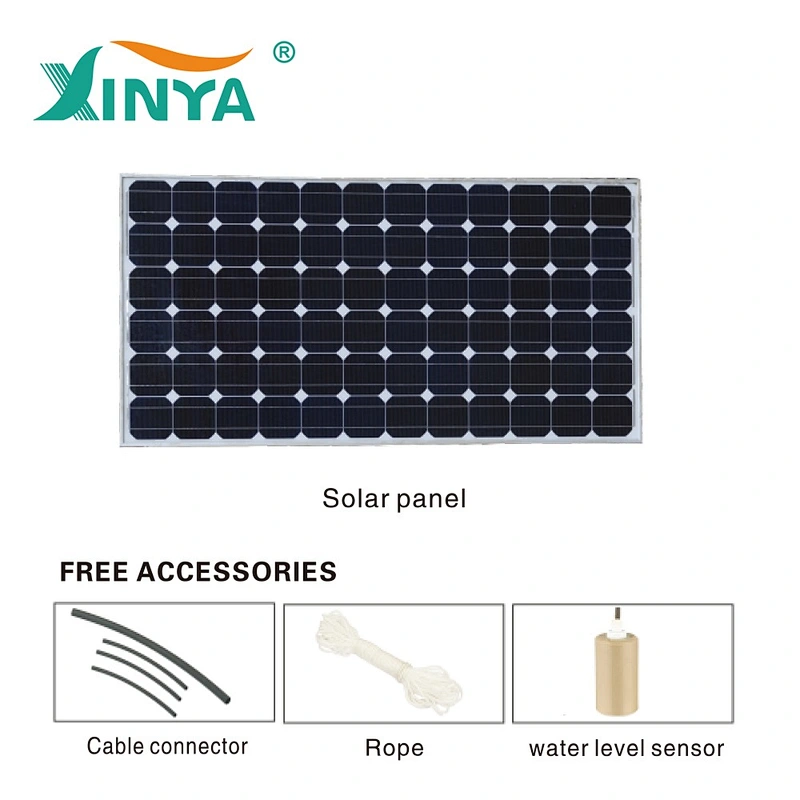

Set Parts
Model （impeller） | Voltage | Power | Max Flow | Max Head | Outlet | G.W. | Dimension |
3SESC4/115-D72/1300 | 72V | 1.3Kw | 4M3/h | 115m | 1.25" | 15kg | 76*500mm |
Application
Working Condition | Working condition | |
Volume ration of sand content | <0.1% | |
Particle Size | <0.2mm | |
Max medium temperature | 40 ℃ | |
PH | 6.5-8.5 | |
Protection against dry work | voltage >99V current<3.5A | |
